In this project, we connect the Texas Instruments ADS54J69 EVM to the Neutron KU60 FPGA board and turn the FPGA into a real-time high-speed dual-channel data acquisition system. The ADC samples two analog input signals and sends the digitized data to the FPGA through JESD204C. The FPGA receives and processes the data using the JESD204C PHY and receiver, reconstructs the ADC samples, and transfers the formatted data to DDR memory using AXI DMA.
But we don’t stop at capturing numbers.
The Vitis application reads the captured ADC data from DDR and sends it to a PC through Ethernet using UDP. A Python-based application on the PC receives the data and provides real-time visualization of both ADC channels, along with frequency and Vpp measurements.
The ADC EVM generates the required ADC sampling clock, JESD204C reference clock, and SYSREF, so no external clock generator is required for this setup.
From applying signals from a function generator to observing the captured waveforms on a PC, this project covers the complete data path:

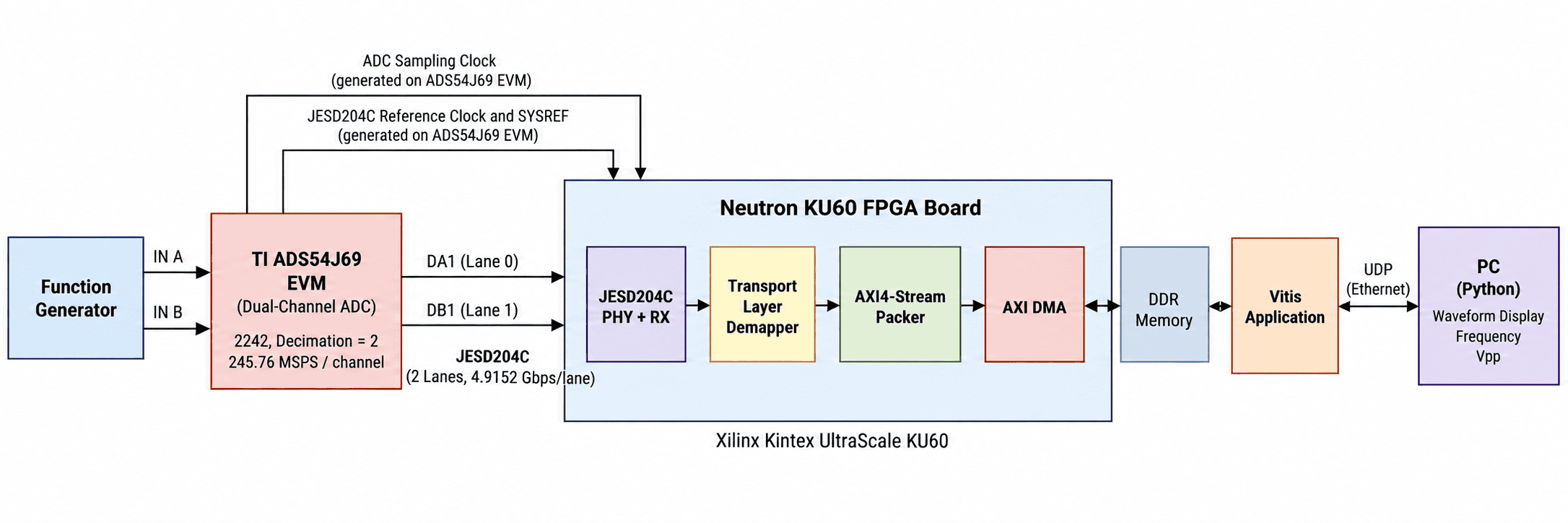

Analog Signals → ADS54J69 EVM → JESD204C → Neutron KU60 FPGA → JESD204C PHY/RX → Transport Layer Demapper → AXI4-Stream Packer → AXI DMA → DDR → Vitis → UDP/Ethernet → Python Waveform Viewer
Let’s get into how the ADS54J69 and Neutron KU60 FPGA work together to convert high-speed analog signals into real-time digital waveforms.
What This Demo Shows
This project demonstrates how the Neutron KU60 FPGA board can be used as a high-speed dual-channel FPGA-based data acquisition platform. In this demo, the board:
- Interfaces with the Texas Instruments ADS54J69 EVM for high-speed dual-channel analog-to-digital conversion
- Captures the ADC data through the JESD204C interface using the FPGA programmable logic
- Receives two JESD204C lanes corresponding to the two ADC channels
- Processes and reconstructs the ADC samples using a dedicated transport-layer demapper
- Formats the dual-channel samples through an AXI4-Stream data path
- Uses AXI DMA to transfer the captured ADC data into DDR memory
- Runs a Vitis application to process the captured data
- Transfers the ADC data to a PC through UDP over Ethernet
- Uses a Python-based waveform viewer for real-time visualization
- Displays the measured frequency and Vpp of the captured signals
The result?
A complete high-speed dual-channel ADC acquisition system running on the Neutron KU60 FPGA board, taking analog signals at the ADS54J69 inputs, capturing and processing them through the FPGA’s JESD204C interface, storing the samples in DDR, and transferring the data over Ethernet for real-time waveform, frequency, and Vpp visualization on a PC.
Hardware Setup
The first step is to establish the physical connections between the ADS54J69 EVM, Neutron KU60 FPGA Board, function generator, and the PC.
Connecting the ADS54J69 EVM to the Neutron KU60 FPGA Board
Make the following connections:
- Connect the 5 V power adapter to the ADS54J69 EVM.
- Connect a USB Micro-B cable from the ADS54J69 EVM to the PC. This connection is used to configure and control the ADC EVM through the TI configuration tool.
- Connect the Function Generator outputs to the ADC inputs on the ADS54J69 EVM using SMA-to-BNC cables. Connect the two generator outputs by setting whatever input signal you want to plot to the corresponding Channel A and Channel B inputs.
- Connect the 12 V power adapter to the Neutron KU60 FPGA Board.
- Connect a USB Type-C cable from the Neutron KU60 FPGA Board to the PC for FPGA programming and debugging.
- Connect a Cat 6 Ethernet cable between the Neutron KU60 FPGA Board and the PC for transferring the captured ADC data.
The complete hardware setup provides the following signal and data path:
Function Generator → ADS54J69 EVM → JESD204C → Neutron KU60 FPGA Board → Ethernet → PC
Running the Project

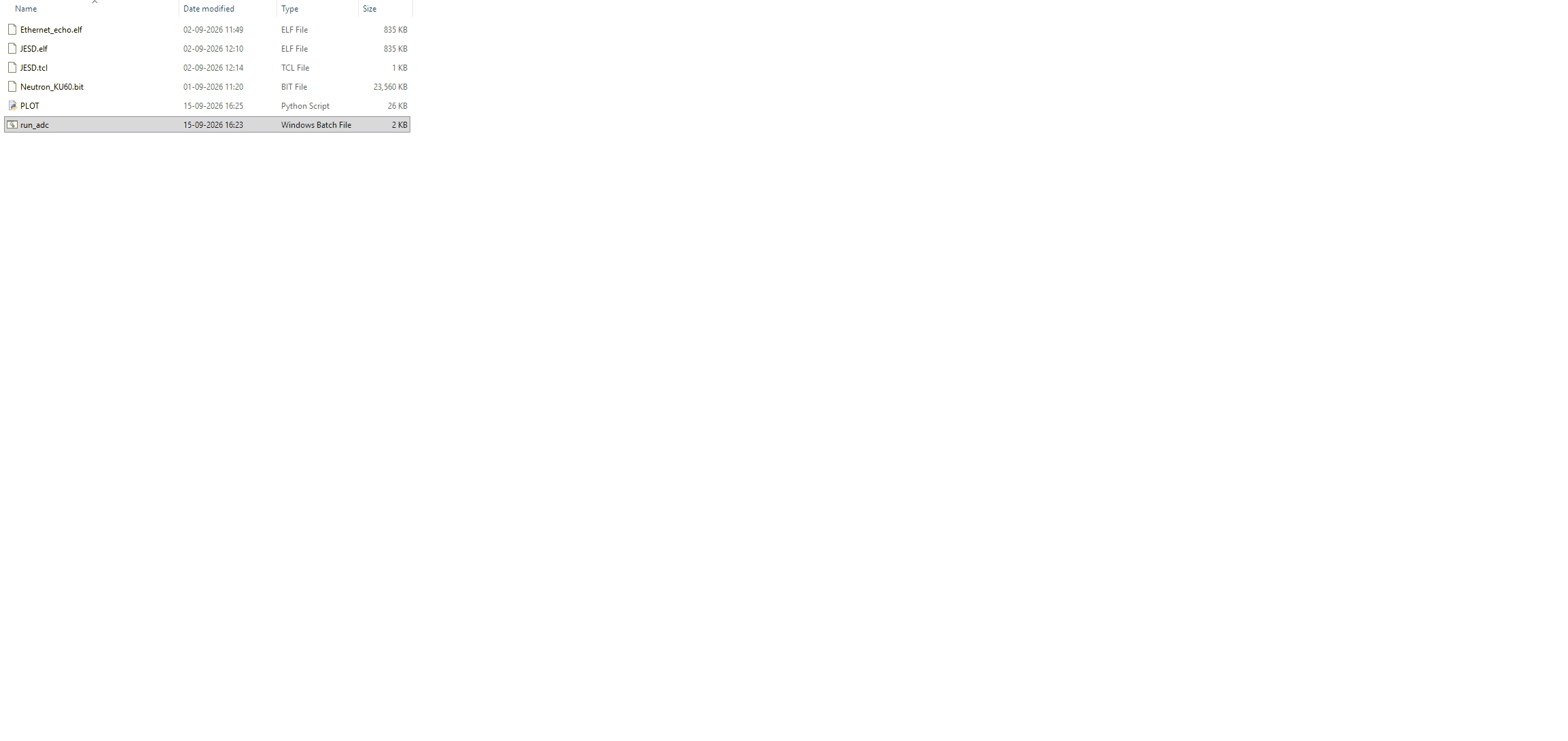

After completing all the required connections and configurations, download the batch file from here, update the Vitis XSDB path as required, and run the run_adc batch file. The waveform will then be plotted automatically.
